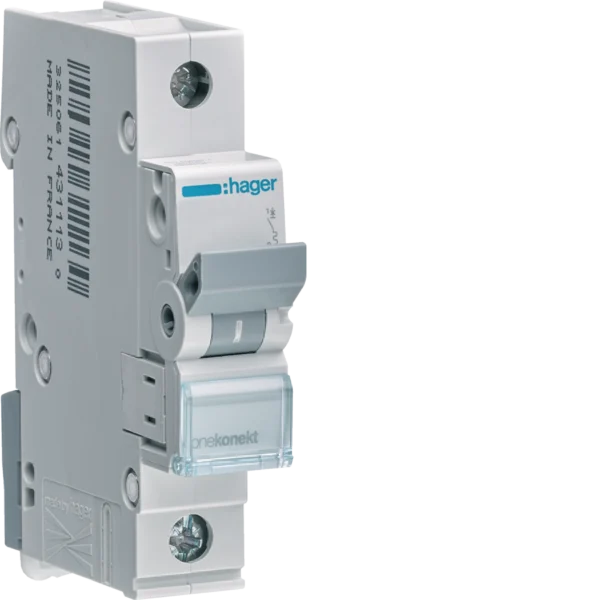

The Hager MCN Series MCB 1P 6kA C-Curve is engineered for dependable protection of electrical circuits in residential, commercial, and industrial installations. Designed to trip automatically under overload or short-circuit conditions, it ensures safety and minimizes downtime.

With a 6kA breaking capacity, this breaker is suitable for modern electrical systems requiring fast and reliable fault interruption. The C-Curve characteristic makes it ideal for general-purpose applications with moderate inrush currents such as lighting, small motors, and power circuits.

Built with a robust 1-Pole construction, screw terminals, 360° installation flexibility, and high resistance to temperature variations, the MCN series ensures long-lasting performance in demanding conditions. The range covers multiple ampere ratings to suit all circuit requirements, from 2A to 63A.

Features & Benefits

• 1P (Single Pole) protection

• C-Curve – suitable for lighting, small motors, and general loads

• 6kA short-circuit breaking capacity

• Wide amper range: 2A to 63A

• Screw terminal connection for secure wiring

• Designed for all climates with IP20 protection rating

• Compact 1-module width for easy panel integration

• Works from –25°C to +70°C

• High mechanical durability and stability

• Fully compliant with IEC 60898-1

✅ Specifications

• Brand: Hager

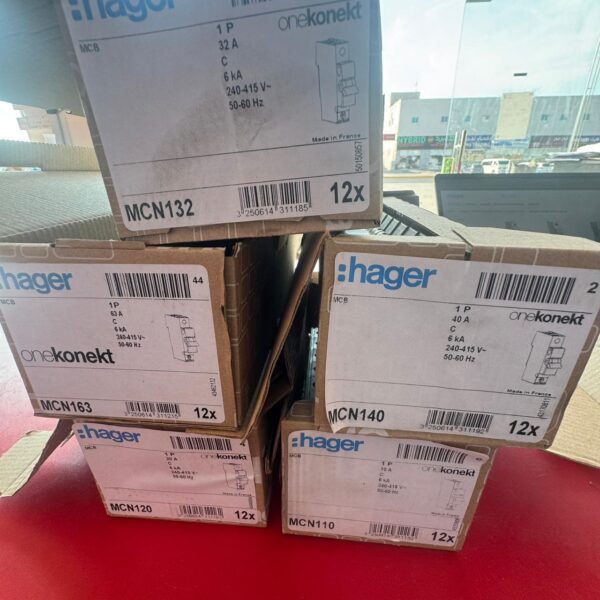

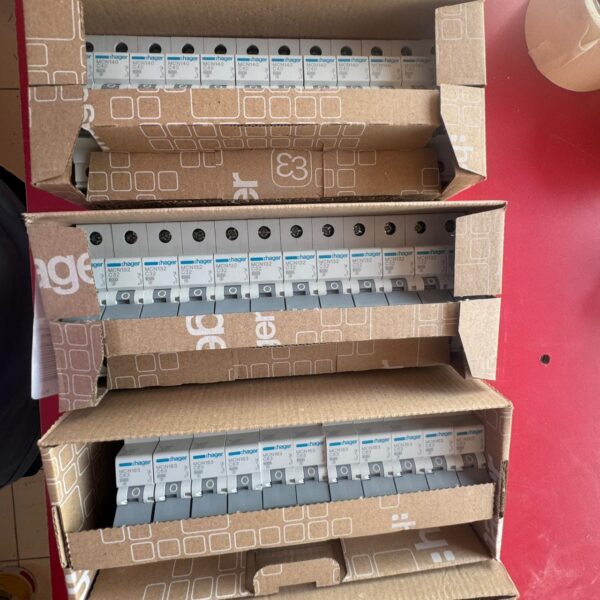

• Series: MCN (MCN102–MCN163)

• Rated Current: 2A–63A (variable models)

• Poles: 1P

• Curve Type: C

• Breaking Capacity: 6 kA

• Voltage: 240–415V AC

• Insulation Voltage: 500V

• Impulse Voltage: 4kV

• Frequency: 50–60 Hz

• Terminal Type: Screw terminal, biconnect

• Conductor Size Rigid: 1–35 mm²

• Conductor Size Flexible: 1–25 mm²

• IP Rating: IP20

• Dimensions: 83 × 17.5 × 70 mm

• Energy Limitation Class: 3

• Operating Temperature: –25°C to +70°C

• Certifications: RoHS, REACH, IEC 60898-1
