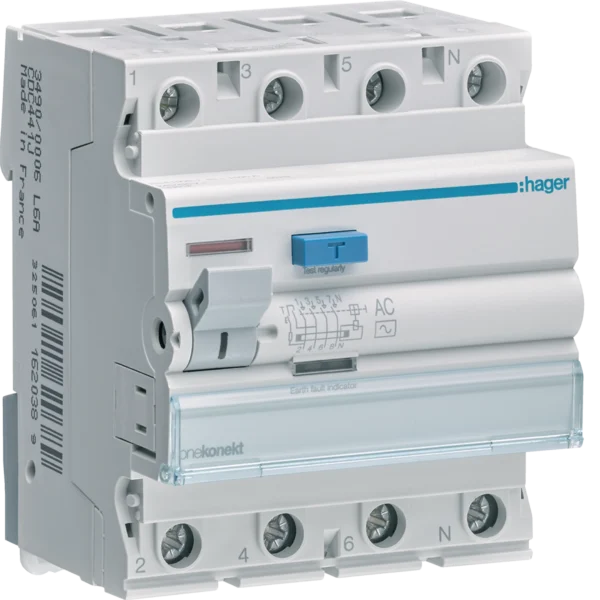

The CEC Series 4-Pole RCCB AC Class 100mA provides dependable earth leakage protection for all types of electrical installations. Designed for safety and long-term performance, it quickly disconnects the circuit in case of residual currents, protecting both people and equipment.

Available in 25A, 40A, and 63A, these RCCBs feature screw terminal connections, IP20 ingress protection, and a 4-module width for DIN-rail mounting. Rated with 1.5kA breaking capacity and 6kA conditional short-circuit current, they are suitable for residential, commercial, and light industrial applications.

Features & Benefits

• 4-Pole protection (full line + neutral)

• AC Class 100mA residual current protection

• Compact 4-module width for DIN-rail installation

• Rated for 25A, 40A, and 63A

• IP20 protection rating

• Durable design with high mechanical and electrical endurance

• Voltage rating: 240–415V AC

• Suitable for homes, offices, and industrial circuits

✅ Specifications

• Brand: Hager / CEC Series

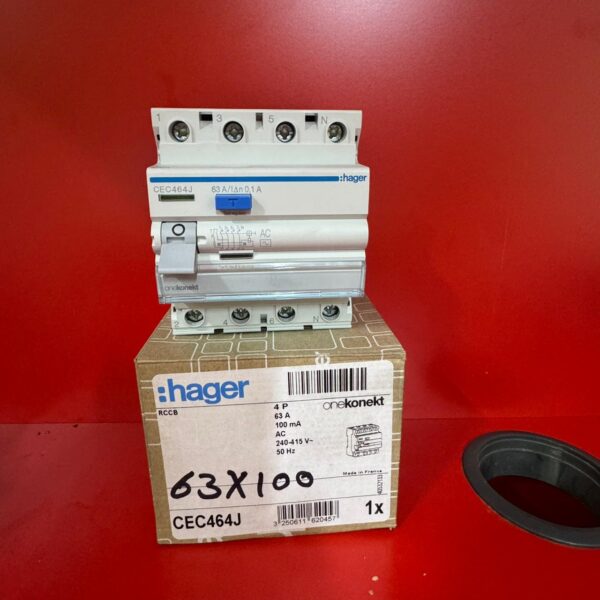

• Models: CEC426J / CEC441J / CEC464J

• Poles: 4P

• Rated Current: 25A / 40A / 63A

• Residual Current: 100mA

• Voltage: 240–415V AC

• Rated Insulation Voltage: 500V

• Impulse Withstand Voltage: 4kV

• Modules: 4

• IP Rating: IP20

• Terminal Type: Screw terminal

• Endurance: 2,000 electrical cycles / 4,000 mechanical operations

• Operating Temperature: -25°C to 70°C
