Double Lin Vertical Non-Return Valve (LL5001A) – Brass Spring Check Valve
Double Lin Vertical Non-Return Valve (LL5001A) – Brass Spring Check Valve
  1. Double Lin Vertical Non-Return Valve (LL5001A) – Brass Spring Check Valve
  2. Double Lin Vertical Non-Return Valve (LL5001A) – Brass Spring Check Valve

Double Lin Vertical Non-Return Valve (LL5001A) – Brass Spring Check Valve

Size:
Get Inquiry (WhatsApp)
SKU: N/A Categories: , Brand:
DOUBLE-LIN VALVES

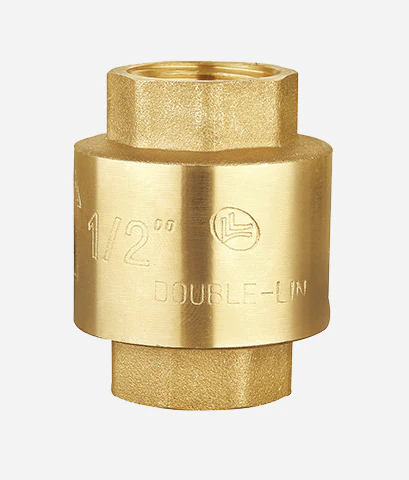

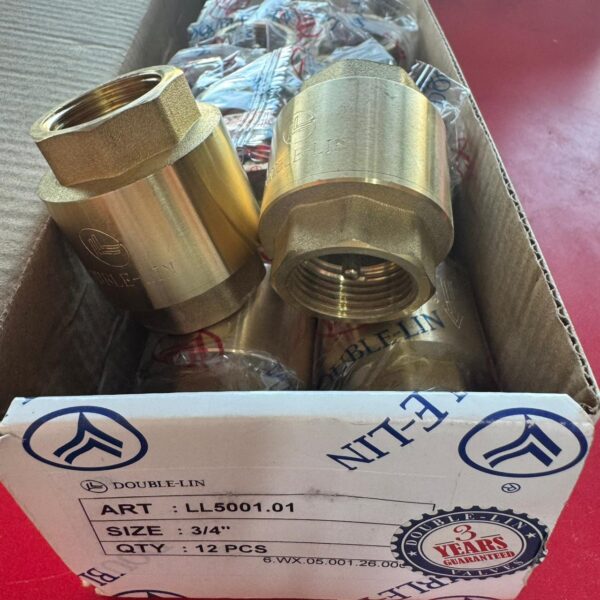

The Double Lin Vertical Non-Return Valve (LL5001A) is a durable and efficient brass spring check valve designed to prevent backflow in water supply and pipeline systems. Manufactured from HPb 57-3 high-grade brass, it ensures long service life, excellent corrosion resistance, and reliable flow control.

This valve features female × female threaded connections conforming to ISO228 (equivalent to DIN 259 and BS 2779 standards), making it compatible with a wide range of pipeline systems. The stainless-steel spring and NBR gasket deliver superior sealing, stability, and high performance even under demanding conditions.

Designed to operate at 16 bar (232 PSI) and withstand temperatures from –10°C to +120°C, this vertical-type non-return valve is ideal for residential, commercial, and industrial applications requiring consistent one-way flow and enhanced system protection.

Size

1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"
