Wefatherm PP-R SDR 6 90° elbow fittings are designed for reliable and smooth directional changes in piping networks. Manufactured from high-quality green PP-R, these elbows are corrosion-resistant, pressure-rated, and suitable for both hot and cold water distribution, as well as HVAC and central heating systems.
Features:
-
High-quality PP-R material
-
Smooth 90° bend for minimal flow resistance
-
Corrosion and scaling resistant
-
Lightweight and easy to install
-
Suitable for concealed and exposed piping systems
Applications:
-
Hot and cold water pipelines
-
Central heating systems
-
HVAC systems
-
General plumbing installations

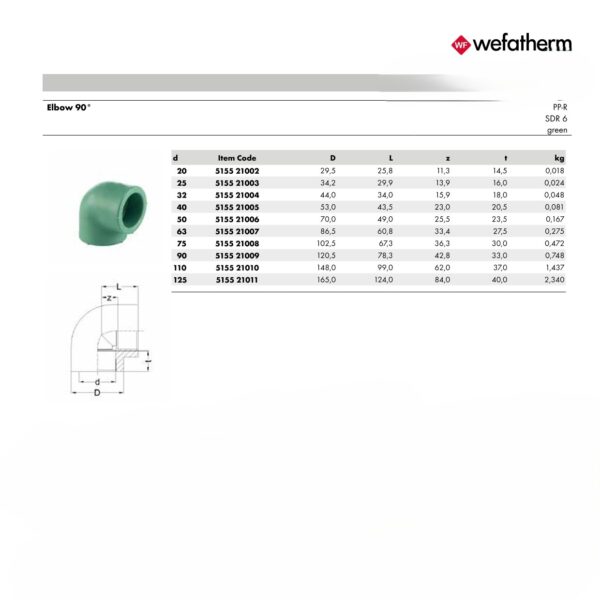

| d (mm) | Item Code | D (mm) | L (mm) | z (mm) | t (mm) | kg |
|---|---|---|---|---|---|---|
| 20 | 5155 21002 | 29.5 | 25.8 | 11.3 | 14.5 | 0.018 |
| 25 | 5155 21003 | 34.2 | 29.9 | 13.9 | 16.0 | 0.024 |
| 32 | 5155 21004 | 44.0 | 34.0 | 15.9 | 18.0 | 0.048 |
| 40 | 5155 21005 | 53.0 | 43.5 | 23.0 | 20.5 | 0.081 |
| 50 | 5155 21006 | 70.0 | 49.0 | 25.5 | 23.5 | 0.167 |
| 63 | 5155 21007 | 86.5 | 60.8 | 33.4 | 27.5 | 0.275 |
| 75 | 5155 21008 | 102.5 | 67.3 | 36.3 | 30.0 | 0.472 |
| 90 | 5155 21009 | 120.5 | 78.3 | 42.8 | 33.0 | 0.748 |
| 110 | 5155 21010 | 148.0 | 99.0 | 62.0 | 37.0 | 1.437 |
| 125 | 5155 21011 | 165.0 | 124.0 | 84.0 | 40.0 | 2.340 |
