Wefatherm PP-R SDR 6 Y-valves are designed for efficient water distribution in residential, commercial, and industrial installations. Manufactured from high-quality green PP-R (and PP-RCT for 32 mm version), these valves offer durability, chemical resistance, and long service life. The valve body is optimized for smooth flow with minimal pressure loss, while the design allows easy installation into standard piping systems.
Features:
-
Made from green PP-R / PP-RCT (32 mm)
-
SDR 6, compatible with hot and cold water
-
Robust and corrosion-resistant
-
Compact Y-shape for smooth water flow
-
Suitable for residential and commercial installations
Applications:
-
Water distribution systems
-
Hot and cold water pipelines
-
Integration into manifold or branch systems

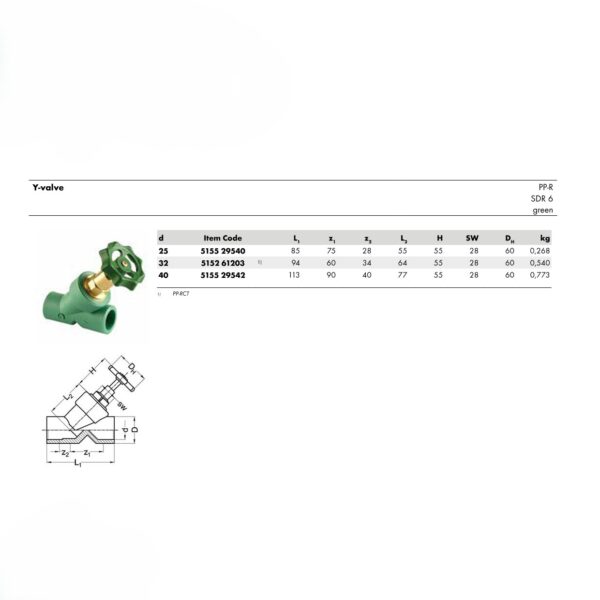

| d (mm) | Item Code | L1 (mm) | z1 (mm) | z2 (mm) | L2 (mm) | H (mm) | SW (mm) | DH (mm) | kg | Notes |
|---|---|---|---|---|---|---|---|---|---|---|
| 25 | 5155 29540 | 85 | 75 | 28 | 55 | 55 | 28 | 60 | 0,268 | — |
| 32 | 5152 61203 | 94 | 60 | 34 | 64 | 55 | 28 | 60 | 0,540 | PP-RCT |
| 40 | 5155 29542 | 113 | 90 | 40 | 77 | 55 | 28 | 60 | 0,773 | — |
